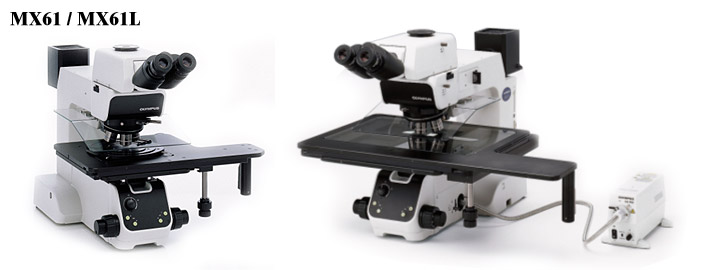

Semiconductor / FPD Inspection Microscope (MX61/MX61L)

Semiconductor / FPD Inspection Microscope (MX6R/MX6RT)



Model


MX61

MX61L

Optics


UIS optics (infinity-corrected system)

Microscope stand

1. Reflected light illumination (F.N. 26.5)
12V, 100W halogen lamp (pre-centering type)
Brightfield/darkfield mirror plus 1 cube (option), exchange method
Built-in motorized aperture diaphragm(Pre-setting for each objective, automatically open for darkfield observation)
2. Transmitted light illumination* (F.N. 26.5)
*When transmitted illumination unit MX-TILLA or MX-TILLB is combined.
Illumination by light source LG-PS2 and light guide LG-SF (12V, 100W halogen lamp)
or their equivalent.
•MX-TILLA: condenser (N.A. 0.5), with aperture stop
•MX-TILLB: condenser (N.A. 0.6), with aperture stop and field stop
3. Observation methods

a. Reflected light brightfield
b. Reflected light darkfield
c. Reflected light Nomarski DIC
d. Reflected light simple polarizeing
e. Reflected light fluorescence
f. Reflected light IR

g. Transmitted light brightfield
h. Transmitted light simple polarizeing

*Separate (optional) cubes are required for
c , d , and e .
*
g and h require combination with a transmitted illumination unit.

Nosepiece

Motorized sextuple revolving nosepiece with slider slot for DIC: U-D6REMC
Motorized quintuple BD-revolving nosepiece with slider slot for DIC: U-D5BDREMC
Motorized centerable quintuple revolving nosepiece with slider slot for DIC: U-P5REMCF
orward rotation by objective exchange button on the front panel of microscope, or directly
by hand switch U-HSTR2 (user designation)

Observation tube

Super widefield erect image tilting
trinocular tube (F.N. 26.5): MX
SWETTROthers: Super widefield trinocular
tube/Widefield binocular tube


Super widefield erect image tilting
trinocular tube (F.N. 26.5): MX-SWETTR or
U-SWETTR (MX-SWETTR is equipped for
MX61L as standard.)

Stage

MX-SIC8R 8”x8” stageStroke: 210x210mm
(Transmitted light illumination area:
189x189mm)MX-SIC6A 6”x6” stageStroke:
158x158mm (Reflected light use only)


MX-SIC1412R2 14”x12” stageStroke:
356x305mm (Transmitted light
illumination area:
356x284mm)Combination with MX-TILLB

Roller guide slide mechanism, belt drive system (no rack), grip clutch function (belt drive disengagement system)

Dimensions/weight

Dimensions: approx. 509(W) x 843(D) x 507(H)mm
Weight” approx. 40kg
(microscope stand only approx. 27kg)


Dimensions: approx. 710(W) x 843(D) x 507(H)mm
Weight: approx. 51kg
(microscope stand only approx. 31kg)

Power consumption

Built-in reflected light source body 100-120/220-240V~1.9/0.9A 50/60Hz,
Transmitted light source (LG-PS2) 100-120/220-240V~3.0/1.8A 50/60Hza

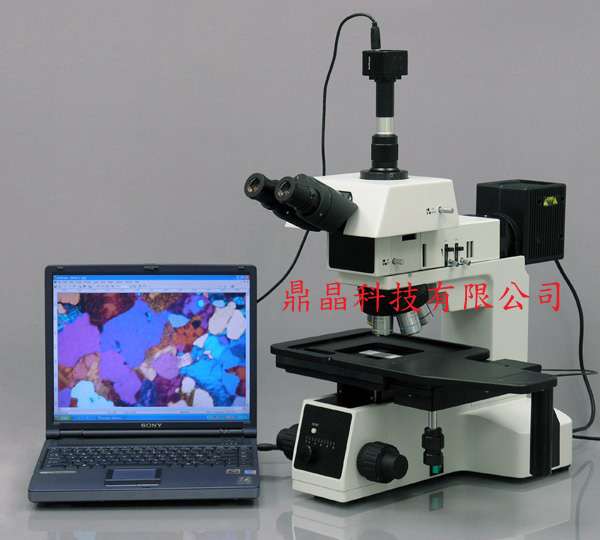

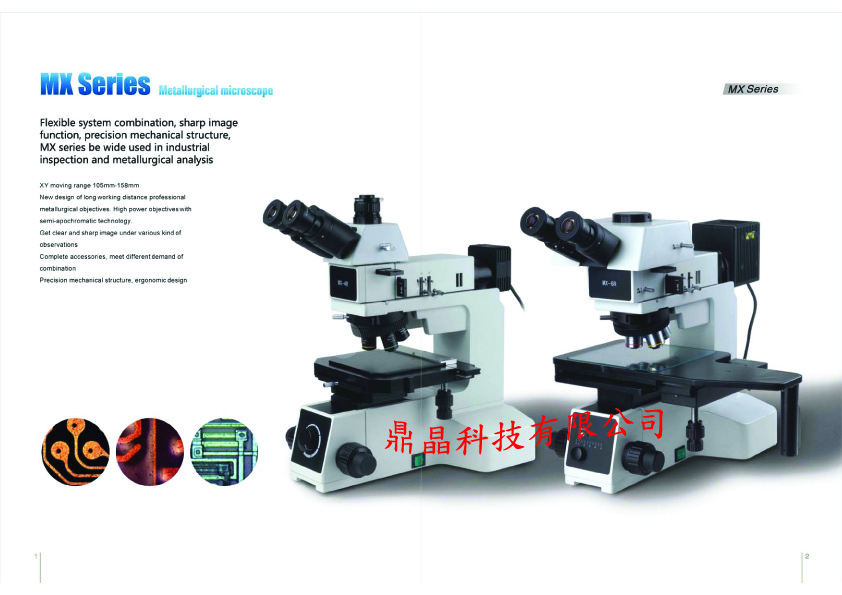

MX6R /6RT SYSTEM:

BD/DIC/B OBJECTIVE

5X10X20X50X100X

12V/100W & 5WLED(R/T)

詳細規格
