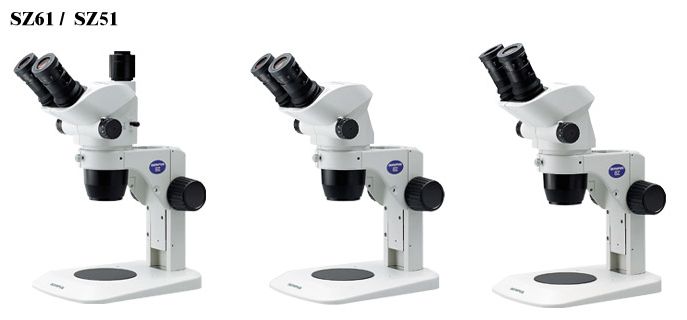

SZ61/SZ51實體顯微鏡

SZ61/SZ51實體顯微鏡



首頁 CNC TOMAS 2D3D 光電精測儀 光學顯微鏡 燈源總匯 CMI X-RAY 膜厚儀 ZEISS/TSK粗度儀 材料試驗機 公益看板


TOKYO SEIMITSU -TSK TOKYO SEIMITSU -TSK



首頁 OLYMPUS 系列 HOMA /LX 顯微鏡 PEAK  放大鏡 Motic 顯微鏡

向上 BXFM/BXFM-SX半套金相 U-OSM MICROMETER微分器 MX61/61L大金相 BX2M-CFU GX51/71倒立顯微鏡 MX-80(大金相r) SZX10/16實體顯微鏡 OLS-4000 LEXT 雷射顯微鏡 SZ61/SZ51實體顯微鏡 LIGHT 光源 OBJECTIVE 物鏡 工具顯微鏡(Tool micro.) 光學名詞註解







Item

Specification

Microscope body

SZ61

SZ61-60

SZ61TR

SZ51

SZ51-60

SZ61

SZ61-60

SZ61TR

SZ51

SZ51-60

Magnification

0.67x to 4.5x

0.8x to 4x

Zoom ratio

6.7:1

5:1

Working distance

110mm

Tube inclination angle

45°

60°

45°

60°

Interpupillary distance adjustment

Left/right interlockedAdjustment range: 52 to 76 mm (using the WHSZ10X eyepieces)

Video camera adaptability

-

c-mount(0.5x built-in)

-

Zoom adjustment knob

Left/right single-shaft horizontal knobInterpupillary distance high/low magnification stopper incorporated.

Optical components

Lead-free materials used

Auxiliary objective

Mounting by screwing into the thread at the bottom of frame (M48 thread x0.75)

Eyepiece

“ComfortView” WHSZ serieslead-free materials used

Stand

SZ2-ST

SZ2-ILST

SZ2-ST

SZ2-ILST

Standard stand

LED reflected/transmitted illumination stand

Frame installation

Mounting diameter 76mm

Focusing adjustment

Knob rotation tension adjustmentFocusing stroke 120mm

Stage plate

SZ2-SPBW (Black & white)SP-C (Glass clear transparent)

The dedicated glass plate in 100mm dia. Included

Light source

Fiber optic illumination systemSZ2-LGB mountable (option)Transmitted light illuminationAttachment(SZ2-ILA) mountable(option)

Transmitted illumination: LEDReflected illumination: LEDAverage LED life span: 6000 hrs.Input rating: 100-120V/220-240V~0.15/0.1A, 50/60Hz

weight

Zoom body only

1,300g

1,500g

1,300g

Configuration 3

3,520g

3,720g

3,520g



SZ51/61相關組件



Configuration 3: Zoom body + WHSZ10X-H(2) + SZ2-ST
