Accessories                    其他各式燈源及耗材

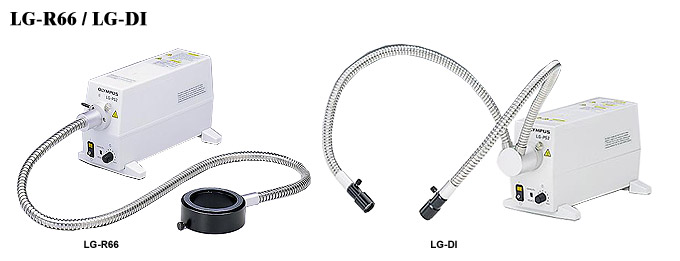

LG-R66

LG-DI

Serpentine pipe

Type

Flexible

Inter-lock

Length

1,000mm

500m

Fiber

Type

Ø50μm

F.S.

0.56

Handle diameter

Input

Ø8mm

Output

Ø70 x 0.22tmm

Ø5.66mm

Convergence

Random

Minimum fold diameter

33mm

60mm

Light balance

-

More than 90%

Dimensions

130 (H)x 76 (W) x 235 (D)mm

130 (H) x 76 (W) x 235 (D)mm








SZX-ILLC

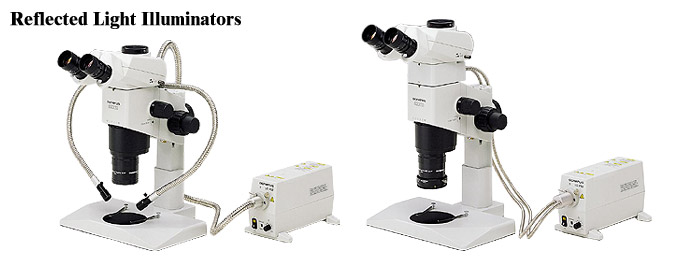

LG-DFI/DI

LG-R66

Specifications Magnification factor: 1.5XLight source: LG-PS2Light guide: LG-DFFiber diameter: ø6Length: 1,000mm (Simple polarized light observation is available) Dual inter-lock light guideLight source: LG-PS2Fiber diameter: ø8 LG-DFI: flexible part 900mm,Inter-lock part 500mmLG-DI: inter-lock part 500mm Ring light guideLight source: LG-PS2Fiber diameter: ø8Flexible part 1,000mmFixing diameter 66mm,Minimum W.D. 30mmRing light guide adapter for SZX: SZX-LGR66
Option

-

HILL301:spot lensLG-FAD: ø25 filter adapter LG-R66PL: polarizer/analyzer set for LG-R66
Features Brighter and evener illumination without adjustment LG-DFI:Fixed to the focusing unit and illumination is synchronizing with the movement of the microscope Bright, even, and no shading illumination is achieved in case of any objectives
Light source specifications Lamp: 12V100W long-life(1,000hrs) halogen lamp with reflected mirrorRated voltage: 100-120V/220V-240V 50/60HzPower consumption: 350VAProtection functions: overheat detection by temperature sensor, over current detection of input/output currentOther functions: light intensity control and lamp ON/OFF control by external signal, detection of burned out lampDimensions: 120(H) x 120(W) x 235(D)mm  Weight: approx. 1.5kgOption: color filter

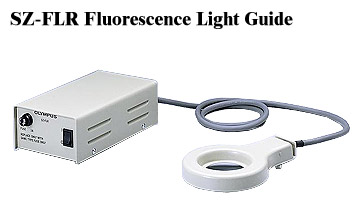

Item

Description

Mounting on microscope body

Clamping with mounting ring; mounting causes a decrease in working distance of approximately 5mm

Fluorescent bulb

10W fluorescent ring bulb; average life: 500 hours

Power supply

AC illumination

Input:

115V±10%, 60Hz±3Hz (SZ-FLR115)
220V
±10%, 50Hz±3Hz (SZ-FLR220)
240V
±10%, 50Hz±3Hz (SZ-FLR240)

Glow lamp starter system,

With stabilizer

Protective fuse built-in,

1A 250V (218001 mdf. By LITTELFUSE)

其他各式燈源及耗材
