Olympus

Olympus 金相顯微鏡

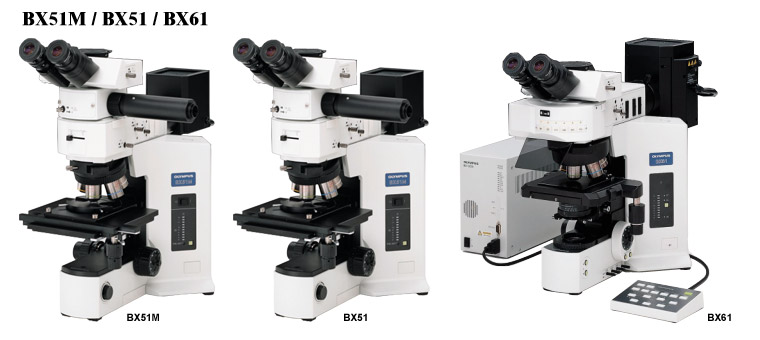

BX51M

BX51

BX61

Optical system   UIS optical system (infinity-corrected)
Objectives UIS objectives
Eyepieces UIS eyepieces
Microscope frame Illumination

Reflected

Reflected/transmitted

Built-in 12V100W light source
Light preset switch
LED voltage indicator
Built-in 12V100W light sourceLight preset switchLED voltage indicatorReflected/transmitted changeover switch External 12V100W light sourceLight preset switchLED voltage indicatorReflected/transmitted changeover switch
Focus Stroke 25mmFine stroke per rotation 100µmMinimum graduation 1µmWith upper limit stopper, torque adjustment for coarse handle Motorized focusing
Stroke 25mm
Minimum graduation 0.01µm
Maximum sample height 65mm (w/o spacer) 25mm (w/o spacer)
Observation tubes Widefield
(F.N. 22)
Inverted: binocular, trinocular, tilting binocular
Erect: trinocular, tilting binocular
Super widefield(F.N. 26.5) Inverted: trinocular
Erect: trinocular, tilting binocular
Reflected light illumination BF etc. BX-RLA2100W halogen (high intensity burner, fiber illuminator mountable)BF/DF/DIC/KPOFS, AS (with centering mechanism), BF/DF interlocking ND filter BX-RLAAMotorized BF/DF changeoverMotorized AS
Reflected fluorescence BX-URA2100W mercury lamp, 75W xenon lamp50W metal halide lamp6position mirror unit turret (standard: WB, WG, WU+BF etc)with FS, AS, (with centering mechanism), with shutter mechanism BX-RFAAMotorized 6 position turretBuilt-in motorized shutterWith FS, AS
Transmitted light

100W halogen
Abbe/long working distance condensers
Built-in transmitted light filters (LBD, ND25, ND6)
Revolving nosepieces For BF Sextuple, centering sextuple, sextuple (motorized sextuple: optional) Motorized sextuple, centering quintuple
For BF/DF Quintuple, centering quintuple, sextuple (motorized sextuple: optional) Motorized quintuple
Stages Coaxial left (right) handle stage:76(X)×52(Y)mm, with torque adjustment
Large-size coaxial left (right) handle stage: 110(X)×105(Y)mm, with lock mechanism in Y axis
System Microscope(ESD Unit)   ZEISS,NIKON,OLYMPUS,國祥,台儀,元利,LEICA


BX41M BX41M-ESD
Optical system UIS optical system
Objectives UIS objectives
Eyepieces UIS eyepieces
Microscope frame Illuminator Reflected light Reflected light(with ESD performance)
6V30W power supply, light preset switch 6V30W power supply, light preset switch
Focus Vertical stage movement: 25mmFine focus movement: 100μmMinimum graduation: 1μmUpper limit stopTorque adjustment for coarse adjustment knobs
Maximum specimen height 65mm(w/o spacer)
Observation tube Widefield(F.N. 22) Inverted: binocular, trnocular and tilting binocular observation tubesErect:   trinocular and tilting binocular observation tubes
Super widefield(F.N. 26.5) Inverted: trinocular observation tubeErect:   trinocular and tilting trinocular observation tubes
Reflected light illuminator BX-KMA BX-KMA-ESD
30W halogen, BF/DIC/KPO 30W halogen, BF/DIC/KPO
Revolving nosepiece For BF Sextuple, centerable sextuple, septuple revolving nosepieces(optional: motorized sextuple) Sextuple revolving nosepiece with slider slot for DIC with ED performance
Stage Coaxial stage with left or right hand low drive control, with torque adjustment(Movement: X=76mm, Y=52mm)Large-sized coaxial stage with left or right hand low drive control,With Y direction locking mechanism)Movement: X=110, Y=52mm)
