Eyepiece Magnification 10X, erect image (inverted when used with upright observation tube), F. N. 14. Diopter adjustment range: ±5 diopter. Provided with rubber eye shade.
Measuring scale Scale lines graduated in increments of 1mm in the entire 10mm length. Shift of scale lines: 1mm per rotation of the shift ring, the circumference of which is divided into 100 graduations.
Measuring range 10mm/objective magnification
Compensation limit for objective magnification tolerance ±5% by combined use of the zoom compensation ring and the provided stage micrometer. Compensation ring clamping screw. Magnification compensation scale.
Actual size Actual size(mm) = measured value(mm)/objective magnification
Reproducibility Reproducibility error ±0.007/A mm(A…objective magnification)
Accuracy Measuring error(A…objective magnification, L…measured length in mm)±[ (0.0002XA + 0.002)L + 0.007/A] mm

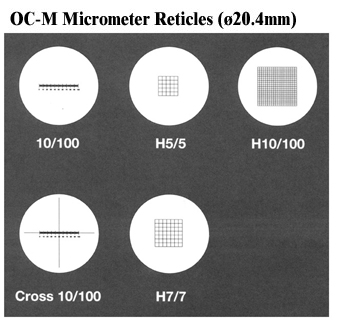

10/100 10mm in 100divisions
Cross 10/100 100 in 100 divisions on crosslines
H5/5 5mm in 5 divisions in grid pattern
H7/7 7mm in 7 divisions in grid pattern
H10/100 10mm in 100 divisions in grid pattern
